A proof-of-concept supervisory monitoring layer for dual-boiler plants running Autoflame™ Mini Mk8 MM™ (MMM8002) burner management controllers. Real-time HMI, automatic lead-lag failover, alarm rationalization, and a full ISA-aligned engineering documentation package. This reference implementation demonstrates KHouse's industrial controls capability — similar systems can be customized for your specific plant configuration and requirements.

See the HMI in actionDiscuss your requirements

What it does

A supervisory layer above the certified Burner Management System, with the operator-facing features modern plants expect.

Real-Time Dual-Boiler Monitoring

Pressure, firing rate, flame status, run hours, and alarm state for both boilers — updated every second over a WebSocket from the supervisory PLC.

Automatic Lead-Lag Failover

When the lead boiler trips on a lockout, the supervisory PLC enables the standby boiler after a configurable delay. The Burner Management System still owns the lightoff sequence.

91 Rationalized Alarm Codes

Every Autoflame™ alarm code in the MMM8002 manual is rationalized per ANSI/ISA-18.2 §6 with consequence, operator action, response time, and priority. No alarm without a documented response.

Web-Based Operator HMI

Modern browser-based HMI — no plugins, no client software. Status badges, alarm banner, trend charts, failover panel. Works on any operator workstation on the plant control network.

Email + SMS with Escalation

ANSI/ISA-18.2 alarm management features: per-alarm rate limiting, hourly cap, flood detection with digest mode, 4-tier escalation, alarm shelving with critical-alarm guard, clear notifications.

Historical Trending

SQLite-backed trend logger for pressure, firing rate, and alarm history. Local-first, durable across restarts, included in the disaster-recovery backup procedure.

ISA/IEC 62443 Cybersecurity

Zone-and-conduit security model, HTTP Basic auth on all REST and WebSocket endpoints, audit trail for all configuration changes, hardening checklist for the HMI server. Not just a port-80 webpage.

Drop-In Above Existing BMS

Sits above your existing certified Burner Management System. No burner replacement, no controller swap. The MMM8002 retains full safety authority — this layer is monitoring + lead-lag swap only.

See it in action

The HMI runs in any modern browser. Below is a recorded loop of the simulator cycling through one full lead-lag swap (about 90 seconds), followed by annotated screenshots of the key states. Sim mode is included with every deployment for operator training and customer evaluation.

Normal lead-lag operation: Boiler 1 RUN, Boiler 2 STANDBY. Both boilers reporting nominal pressure and firing rate.
Normal lead-lag operation: Boiler 1 RUN, Boiler 2 STANDBY. Both boilers reporting nominal pressure and firing rate.

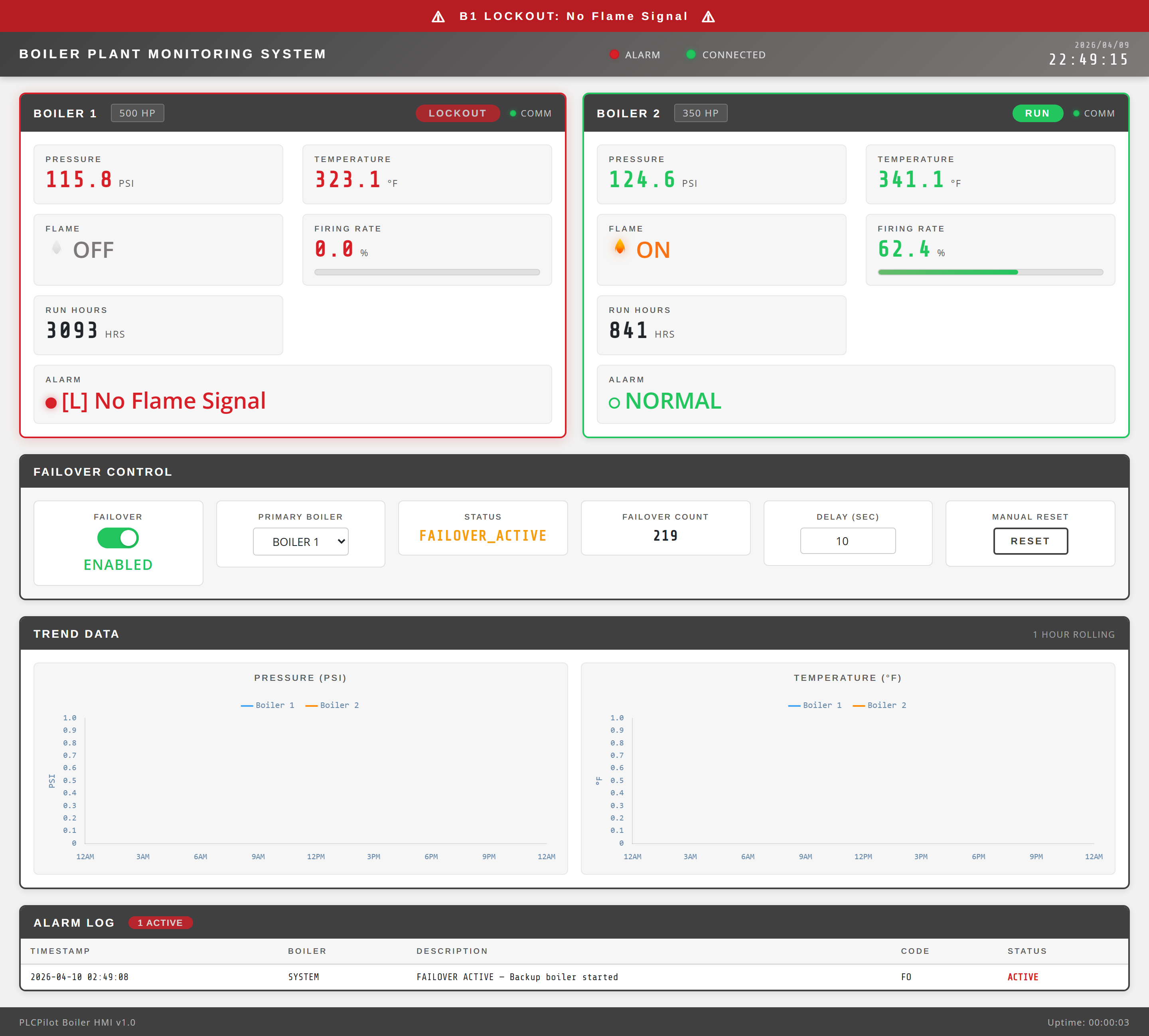

Failover in progress: Boiler 1 in LOCKOUT, Boiler 2 ramping up. Alarm banner shows lockout description; notification has fired.
Failover in progress: Boiler 1 in LOCKOUT, Boiler 2 ramping up. Alarm banner shows lockout description; notification has fired.

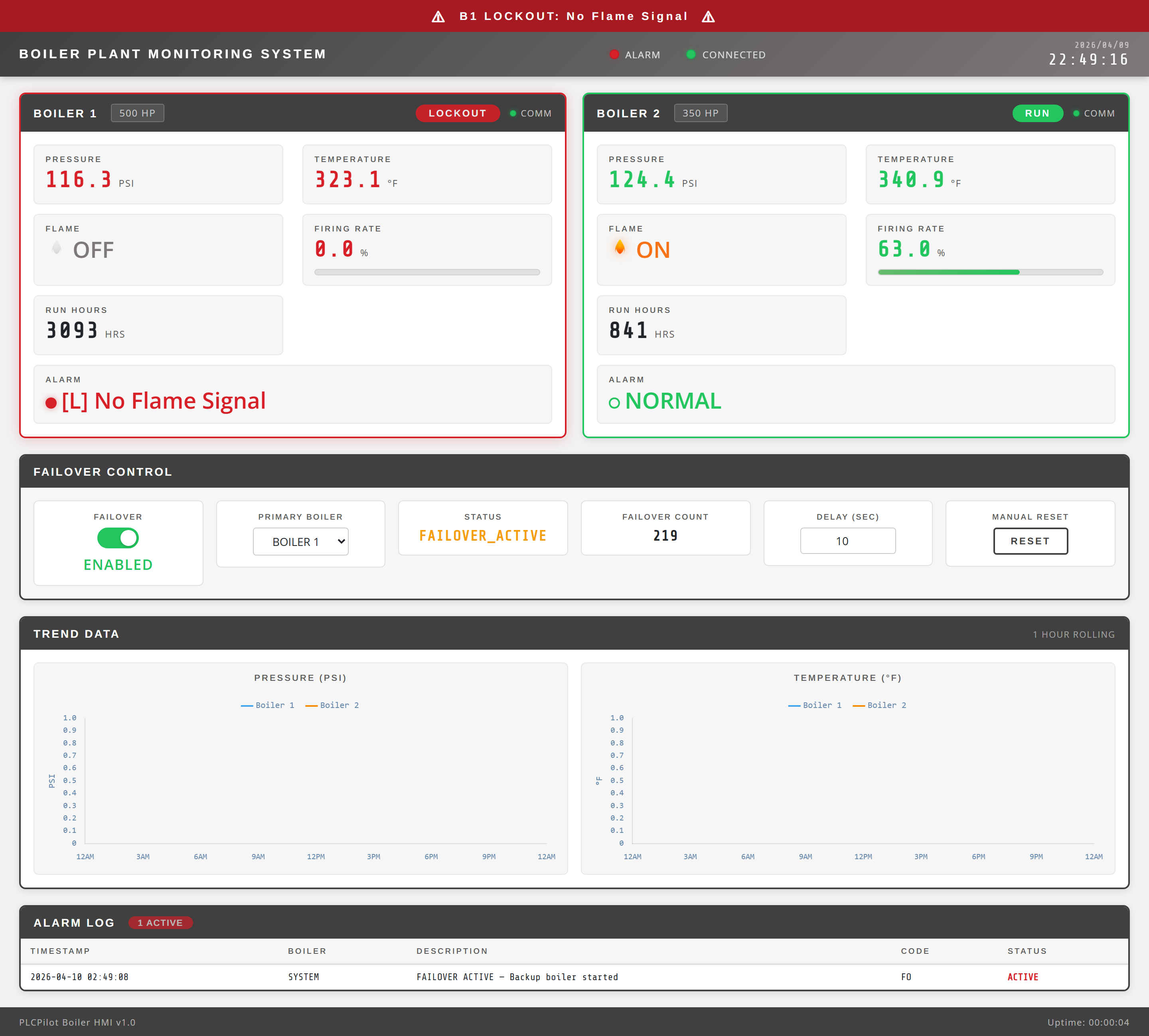

Critical alarm banner — color reserved for abnormal conditions per ANSI/ISA-101.01-2015 high-performance HMI principles.
Critical alarm banner — color reserved for abnormal conditions per ANSI/ISA-101.01-2015 high-performance HMI principles.

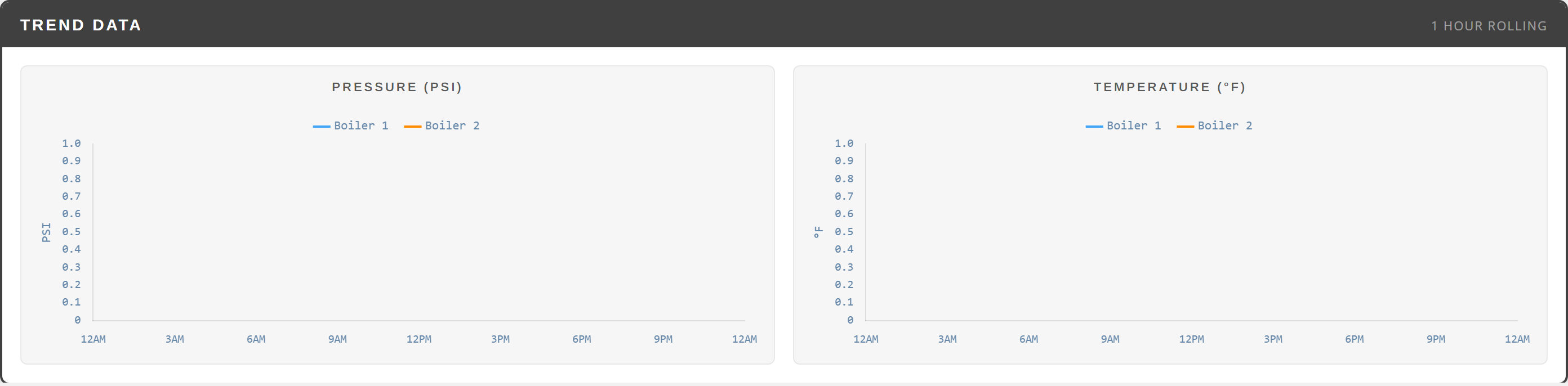

Trend chart panel: 1-hour rolling window of pressure and firing rate for both boilers. Backed by SQLite for durability.
Trend chart panel: 1-hour rolling window of pressure and firing rate for both boilers. Backed by SQLite for durability.

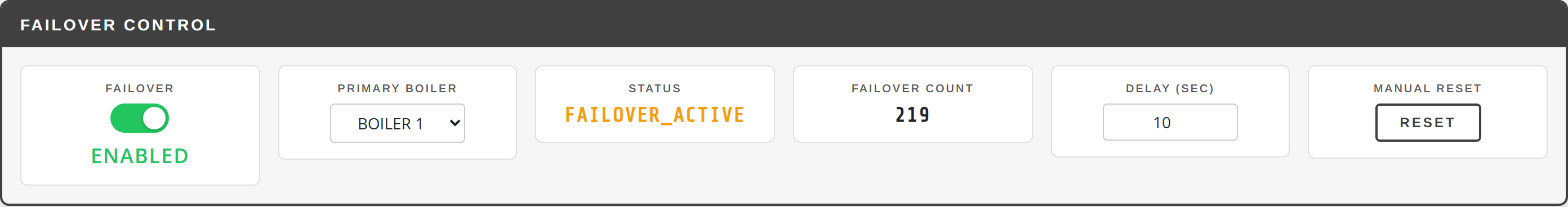

Failover control panel: enable/disable, primary boiler selector, manual reset, and live failover state.
Failover control panel: enable/disable, primary boiler selector, manual reset, and live failover state.

Built to current ISA and process safety standards

The project is positioned for a compliance-ready posture — structured so an internal or customer audit could proceed without rework. Every standard below has explicit conformance evidence in the Standards Compliance Register (BLR-STD-009).

NFPA 85ASME CSD-1ANSI/ISA-18.2-2016ANSI/ISA-101.01-2015ANSI/ISA/IEC 62443-3-2ANSI/ISA/IEC 62443-3-3ISA-TR84.00.05ISA-105IEC 61131-3ANSI/ISA-5.1 / 5.2 / 88.01EEMUA 191OSHA PSM (compatible)

Compliance-ready posture per BLR-STD-009. Not third-party certified. The project is supervisory monitoring only and is formally bounded out of IEC 61511 scope per ISA-TR84.00.05 — see the Hazard Analysis (BLR-HZA-016) for the SIS-boundary derivation.
